Product Summary
The BSM200GB60DLC is an IGBT-Module.
Parametrics
BSM200GB60DLC maximum rated values: (1)collector-emitter voltage VCES: 600 V; (2)IC,nom.: 200 A; (3)DC-collector current IC: 230 A; (4)repetitive peak collector current ICRM: 400 A; (5)total power dissipation Ptot: 730 W; (6)gate-emitter peak voltage VGES: +/- 20 V.
Features
BSM200GB60DLC characteristic values: (1)VF: 1,25 to 1,6 V; (2)forward voltage: 1,20 V; (3)IRM: 154 A; (4)peak reverse recovery current: 188 A; (5)Qr: 12.1 μC; (6)recoverred charge: 19.7 μC; (7)reverse recovery energy Erec: 4.1 mJ.

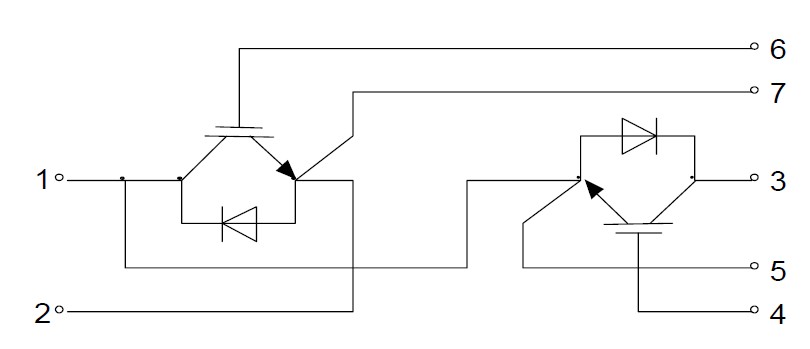

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSM200GB60DLC |
Infineon Technologies |
IGBT Modules 600V 200A DUAL |
Data Sheet |
|
|
||||||||
