XC4VFX60-11FFG672I

Product Summary

The XC4VFX60-11FFG672I is the newest FPGA from Xilinx. The innovative Advanced Silicon Modular Block or ASMBL column-based architecture is unique in the programmable logic industry. Choice and feature combinations are offered for all complex applications. A wide array of hard-IP core blocks complete the system solution. These cores of XC4VFX60-11FFG672I include the PowerPC processors (with a new APU interface), Tri-Mode Ethernet MACs, 622 Mb/s to 11.1 Gb/s serial transceivers, voltage/temperature system monitor blocks, dedicated DSP slices, high-speed clock management circuitry, and source-synchronous interface blocks. The XC4VFX60-11FFG672I building blocks are an enhancement of those found in the popular Virtex-based product families: Virtex, Virtex-E, Virtex-II, Virtex-II Pro, and Virtex-II Pro X, allowing upward compatibility of existing designs. The XC4VFX60-11FFG672I is produced on a state-of-the-art 90-nm copper process, using 300 mm (12 inch) wafer technology. Combining a wide variety of flexible features, the Virtex-4 family enhances programmable logic design capabilities and is a powerful alternative to ASIC technology.

Parametrics

XC4VFX60-11FFG672I absolute maximum ratings: (1)Internal supply voltage relative to GND: –0.5 to 1.32 V; (2)Auxiliary supply voltage relative to GND: –0.5 to 3.0 V; (3)Output drivers supply voltage relative to GND: –0.5 to 3.75 V; (4)Key memory battery backup supply: –0.5 to 4.05 V; (5)Input reference voltage: –0.3 to 3.75 V; (6)I/O input voltage relative to GND (all user and dedicated I/Os): –0.75 to 4.05 V; (7)I/O input voltage relative to GND (restricted to maximum of 100 user I/Os): –0.95 to 4.4 V (Commercial Temperature), –0.85 to 4.3 V (Industrial Temperature); (8)2.5V or below I/O input voltage relative to GND (user and dedicated I/Os): –0.75 to VCCO +0.5 V; (9)Current applied to an I/O pin, powered or unpowered: ±100 mA; (10)Total current applied to all I/O pins, powered or unpowered: ±200 mA.

Features

XC4VFX60-11FFG672I features: (1)Three families LX/SX/FX: Virtex-4 LX: High-performance logic applications solution, Virtex-4 FX: High-performance, full-featured solution for embedded platform applications, Virtex-4 SX: High-performance solution for Digital Signal Processing (DSP) applications; (2)Xesium Clock Technology: Digital Clock Manager (DCM) blocks, Additional Phase-Matched Clock Dividers (PMCD), Differential Global Clocks; (3)XtremeDSP Slice: 18x18, two’s complement, signed Multiplier, Optional pipeline stages, Built-In Accumulator (48-bits) & Adder/Subtracter; (4)Smart RAM Memory Hierarchy: Distributed RAM, Dual-Port 18-Kbit RAM blocks.

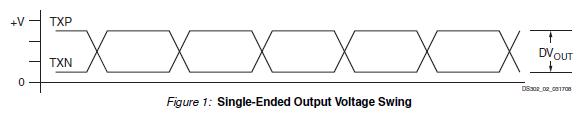

Diagrams
